Designed by Mecanoo Architecten
Building integration by Lead Dao Technology & Engineering

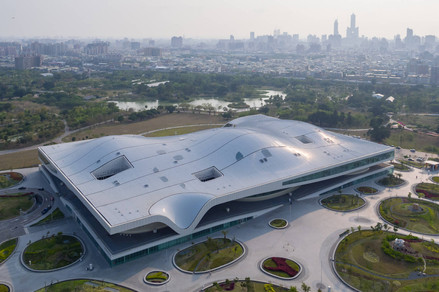

衛武營國家藝術文化中心
2011-2018
Lead Dao implemented a integrated 3D-model of the whole building to coordinate all the subsequent planning steps of the numerous trades involved. Numbers of plans and sections were generated from the master model for further development. The master model has played a huge role in minimizing coordination errors with architects and structural engineers.
Lead Dao利用了整個建築的綜合三維資訊模型, 以協調所涉及的各配合單位間的所有後續規劃步驟, 從主模型生成計劃和部分的數量以進行進一步開發. 主模型在與建築師和結構工程師的協調中降低錯誤方面發揮了巨大作用.
top two
surface quality checking before(left) and after(right) by CATIA to achieve at least G1 or G2 smoothness level
middle left
skylights realization; the red ones mark as beyond system tolerance limitation whch is over 200mm
middle right
deviation of older and updated surfaces
bottom left
surface contour lines in Z direction before(right) and after(left) adjustment
bottom right
MEP collision detection
*All rights reserved to Mecanoo Architecten
